DEVICE FEATURE
This Vapor Lock Valves is hand-operated (open/close) 4-inches ball type valve which was developed for a large sampling capacity (1.0 / 2.0 liters). Gauging/Sampling/etc can be done without releasing the dangerous vapors into the atmosphere.
Model F-100 can be fitted on the flange JIS.10K100 of flanged deck stool piece.

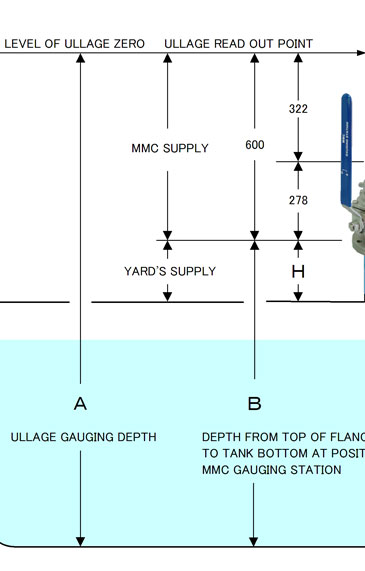

INSTLLATION SCHEMATIC
A = 322mm + 278mm + GASKET + B
